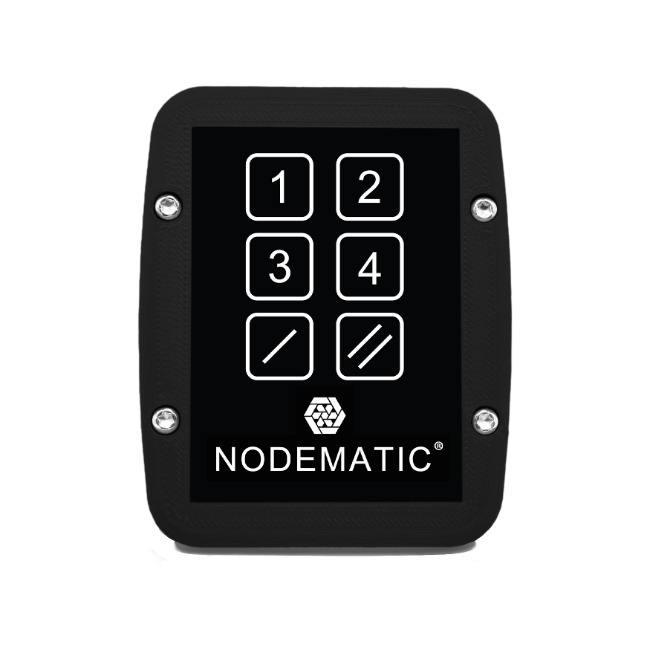

The NODEMATIC^® ND-XCS-6S Touch Wireless Keypad offers convenient and secure PIN-code access control for roller shutters, garages, doors, and other wireless receivers. With a modern touchscreen and individual PIN codes, it ensures secure access for authorized personnel.

Designed, developed, and manufactured in Germany, the access system is uniquely compact and ultra-slim at just 10 mm. It offers up to 70 individual access codes, backlighting with 6 color options, 6 wireless channels with adjustable coding, and an open-collector output for additional functionality.

The keypad is suitable for both indoor and outdoor use and operates on a standard CR2032 battery or a power supply of 5-24 VDC. Additionally, a privacy shield is included to provide extra protection during PIN code entry.

Technical Data

• 70 PIN access codes, 1 admin access code
• PIN code length: 3 - 7
• Coding: Rolling-Code KEELOQ for NODEMATIC^® receivers or Fixed Code EV1527
• Transmission frequency: 433.92 MHz
• Range max.: 100 m / 30 m (line of sight / indoors)
• Transmission power: < 10 mW
• Transmission duration: 0.5, 1, 3, and 5 seconds
• Backlighting brightness levels: 25, 50, 75, 100%
• Backlighting colors: Red, Green, Yellow, Violet, Light Blue, White, Blue, and Off
• Display timeout: 1, 3, 5, and 10 seconds
• Notification light: Red, Green, Yellow, Violet, Light Blue, White, Blue, and Off
• Backlighting and beeper can be disabled: Yes
• Power supply: CR2032 3V, External 5 - 24 VDC
• Open-collector output: 30V, 4A, 50mΩ
• Protection class: IP54
• Housing: UV and weather-resistant
• Application: Indoor and outdoor
• Temperature: -20 - 60 °C
• Weight: 50 g
• Dimensions: 87 x 70 x 10 mm
• Privacy shield dimensions: 93 x 77 x 30 mm

Download User Manual

(Click to download)

Package Contents

1x NODEMATIC Touch Wireless Keypad Model: ND-XCS-6S

• Including battery
• Privacy shield
• User manual (digital)

Do you have further questions? Feel free to contact our mail support hotline before or after purchase anytime.
